Intel SYP301
computer
| Company: | Intel |
| Type: | computer |
| Bus: | ISA |
| Introduction: | 1987 |
| Maximum memory size: | 16.5MB |
| Maximum number of CPUs: | 1 |
| uses architecture: | IA32 |
| can contain: | Intel 80386 |
| System class: | Desktop |
Intel SYP301 in the collection.
Photos

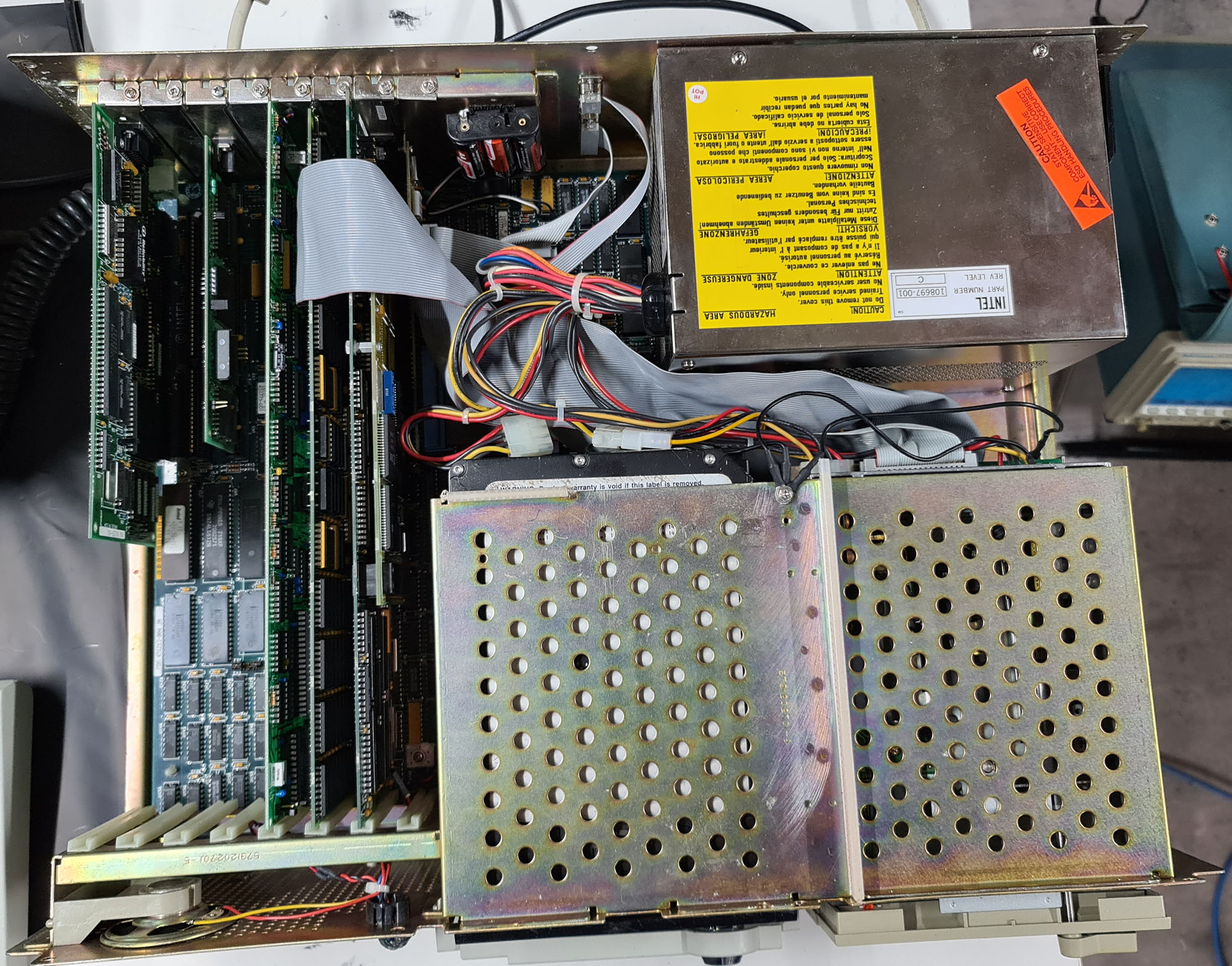

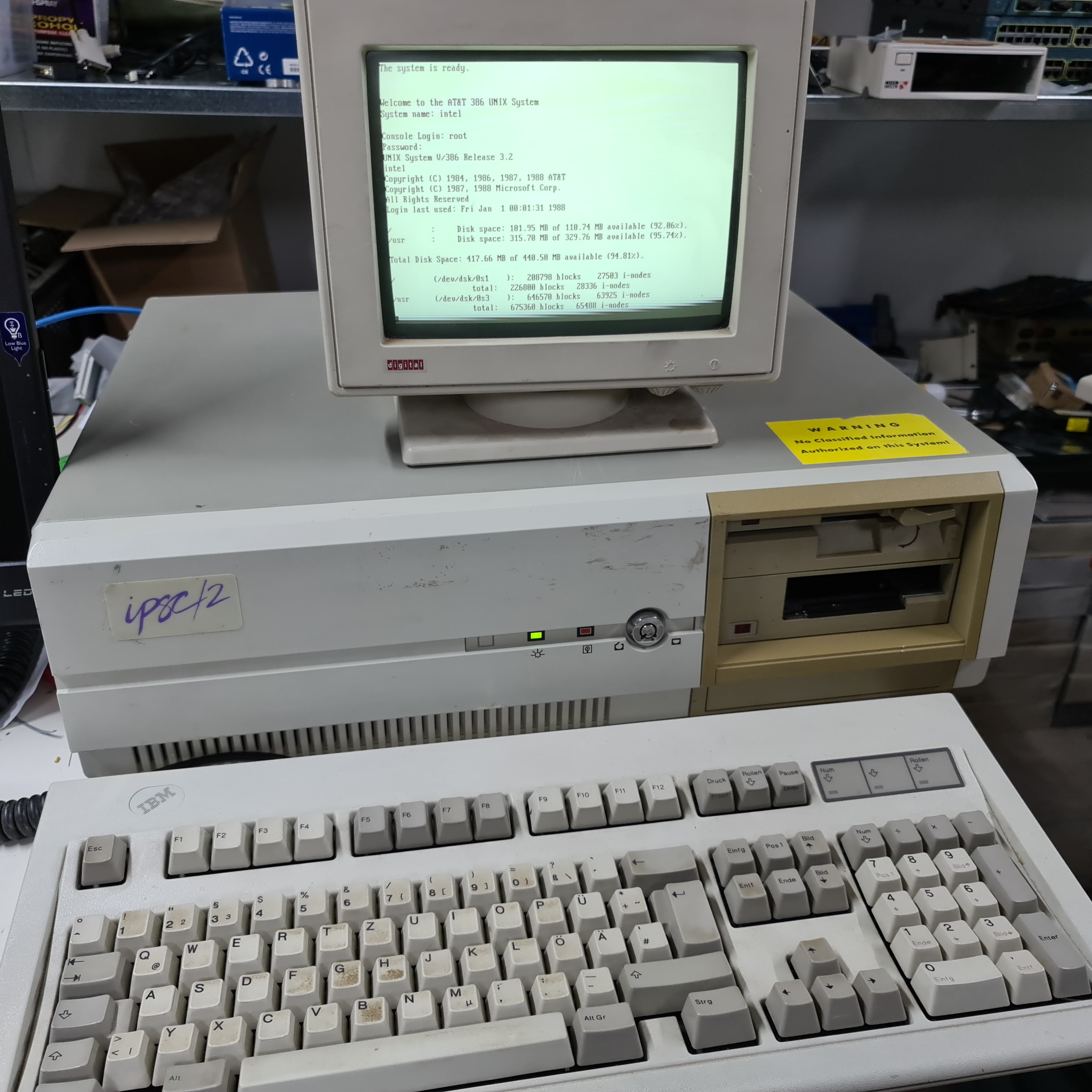

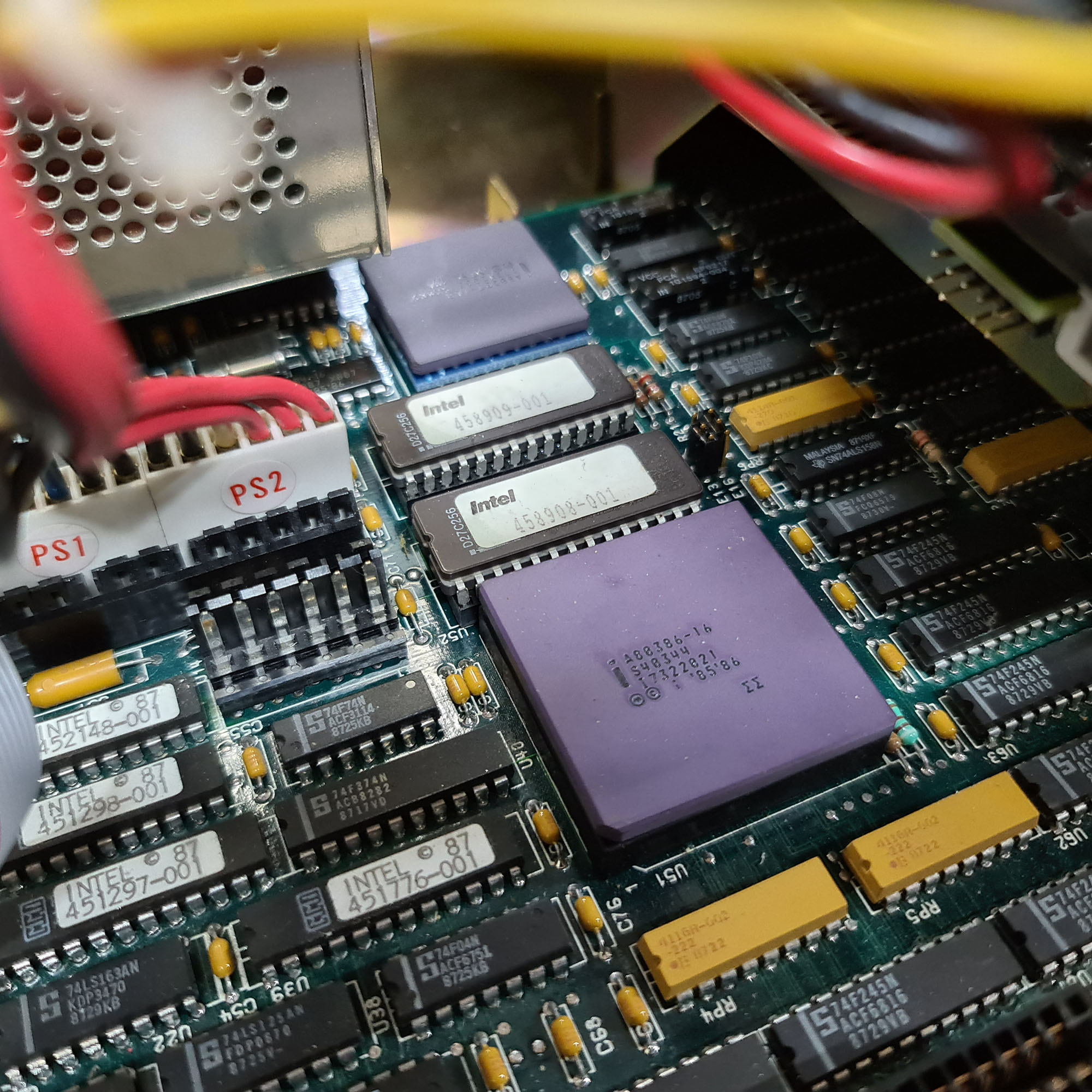

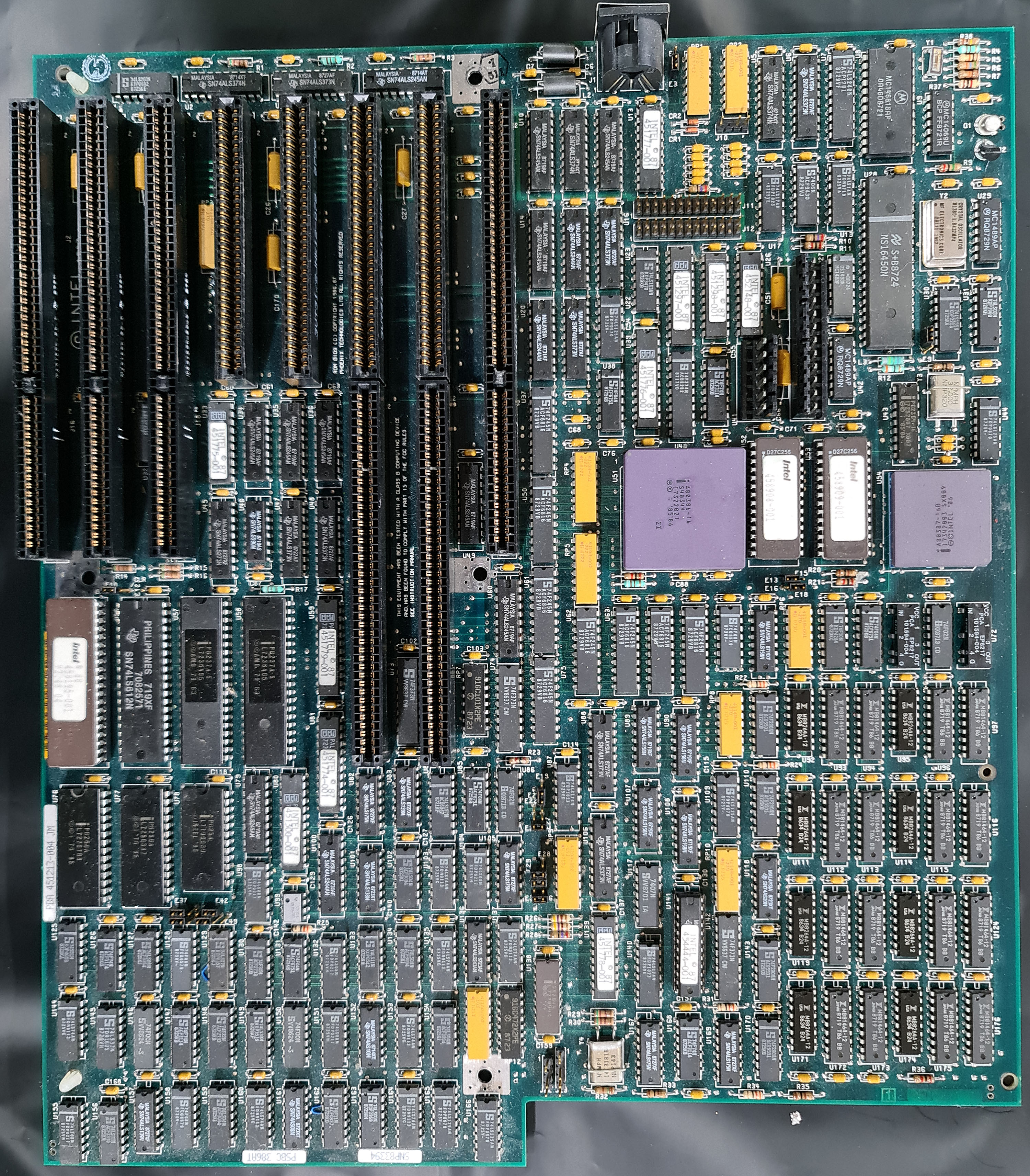

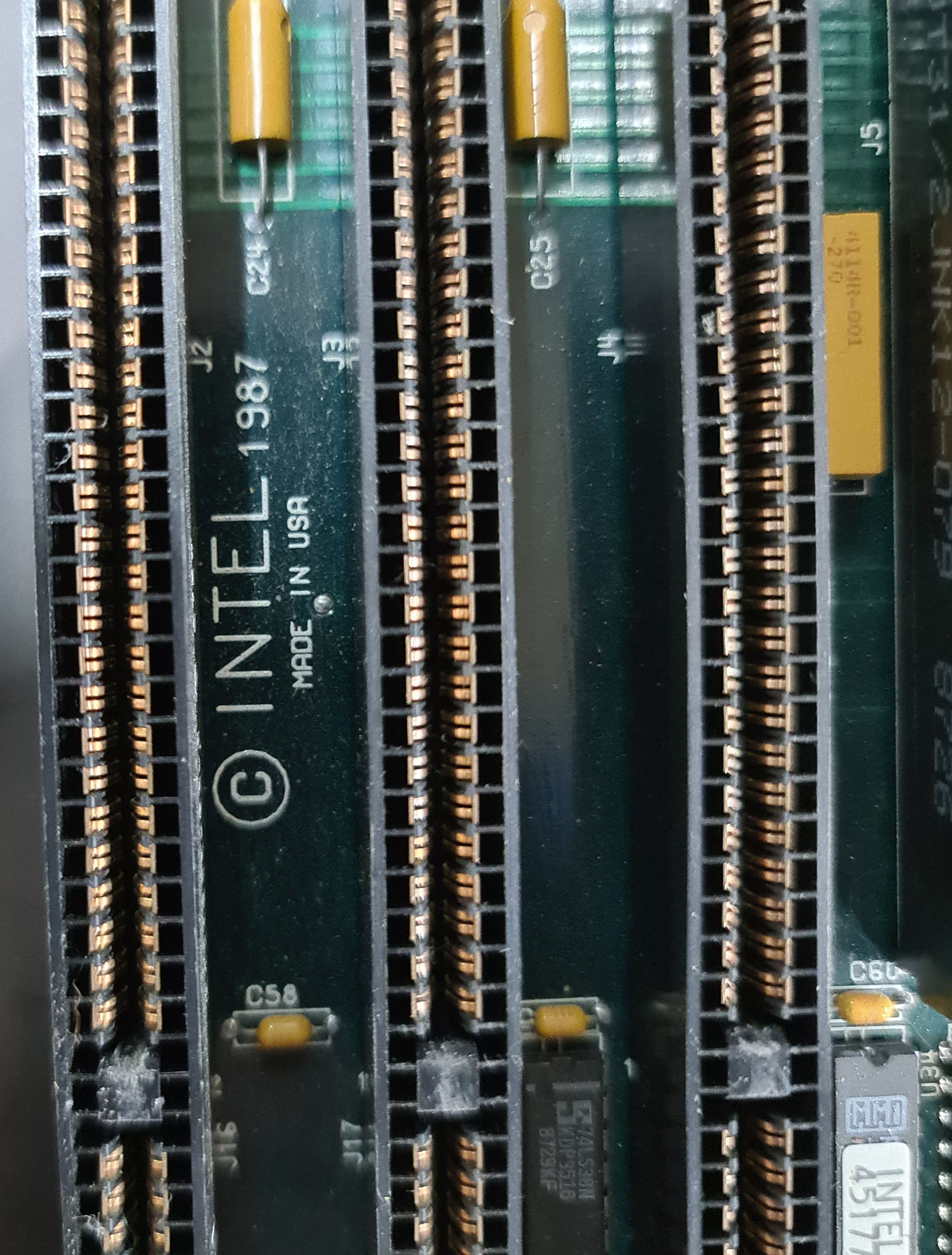

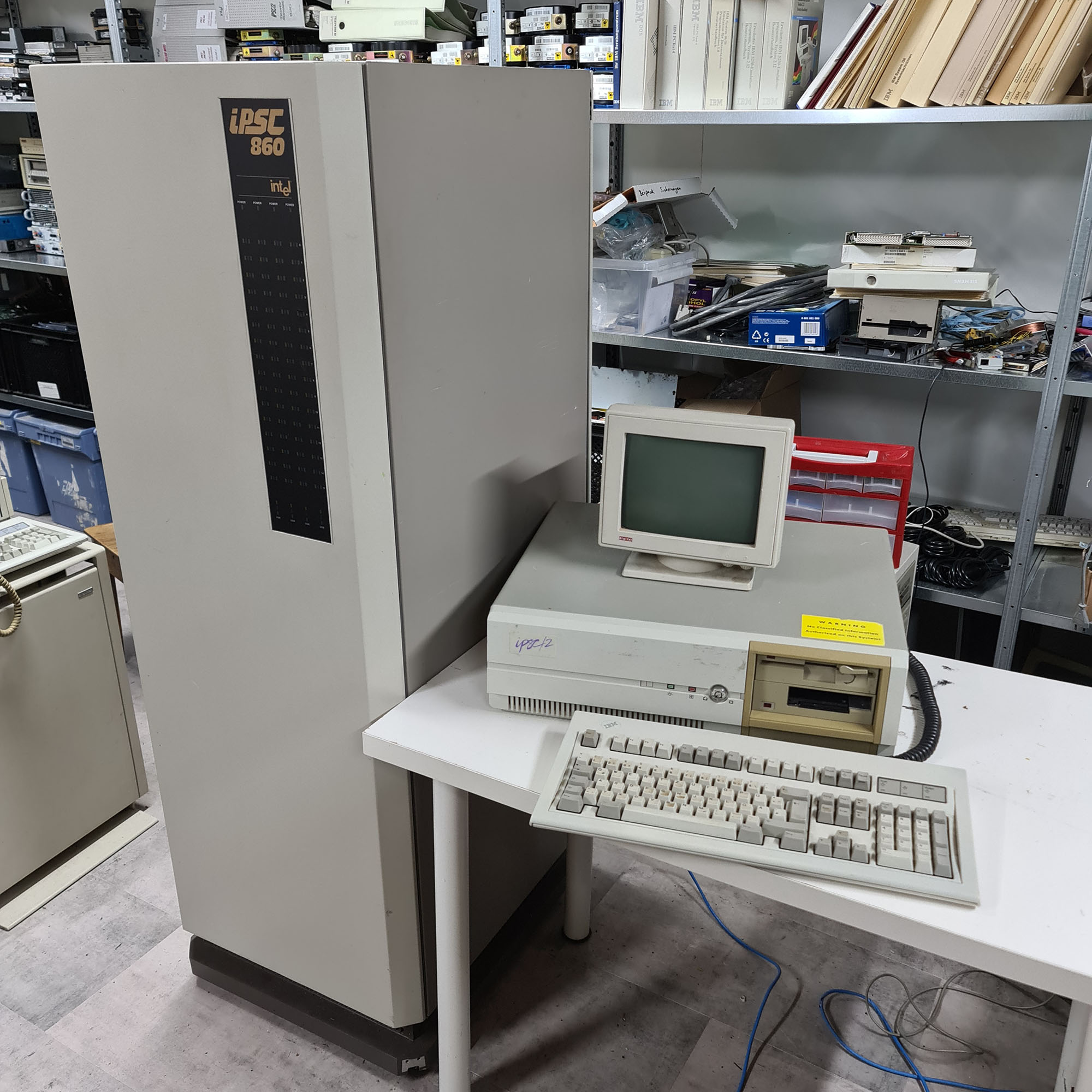

This desktop system was built by Intel around their iSBC386AT main board, possibly the first AT-compatible 386 main board produced. This machine is the SRM (Systems Resource Manager) for the Intel iPSC/860.
Cards

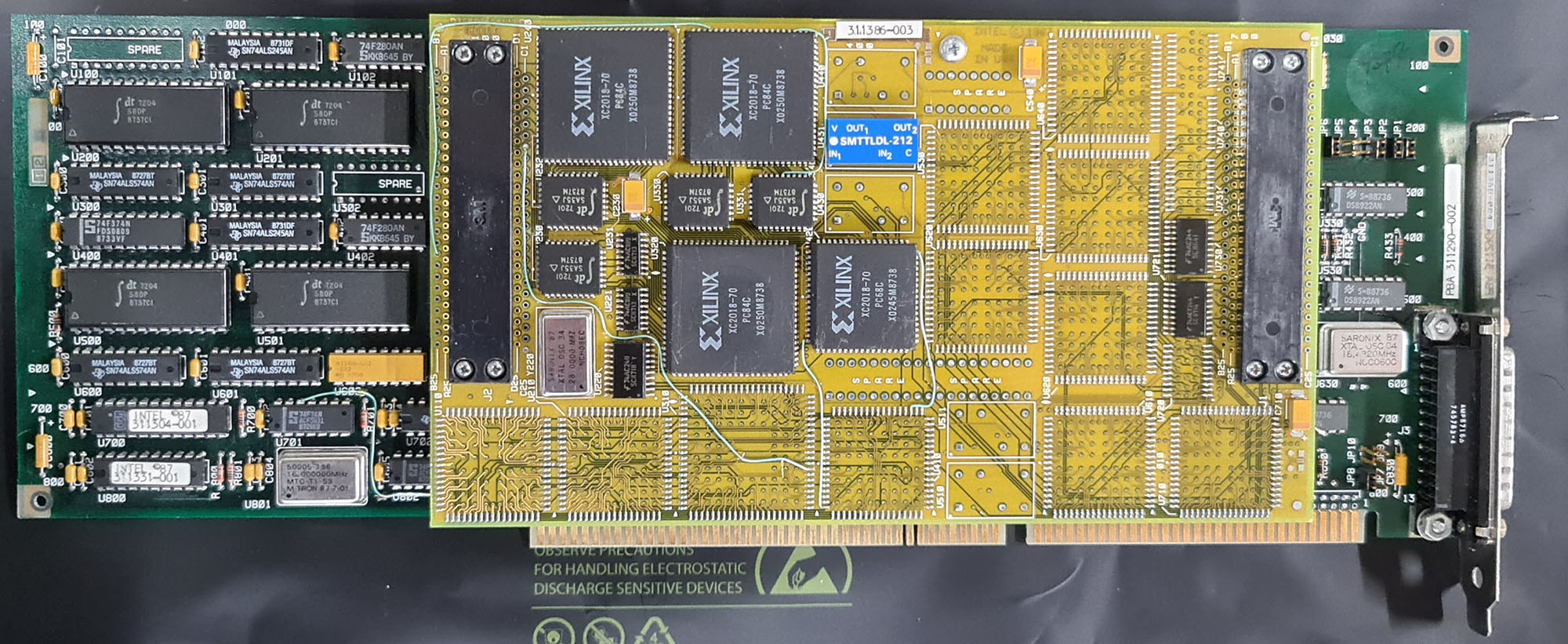

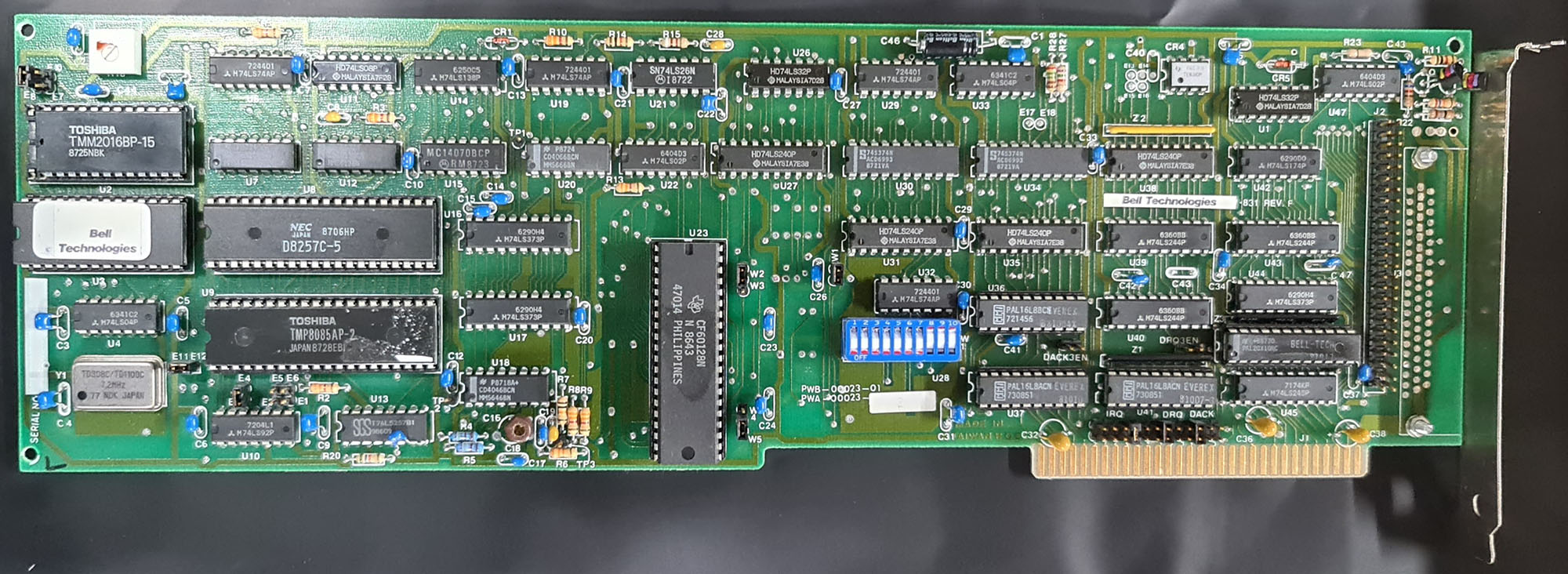

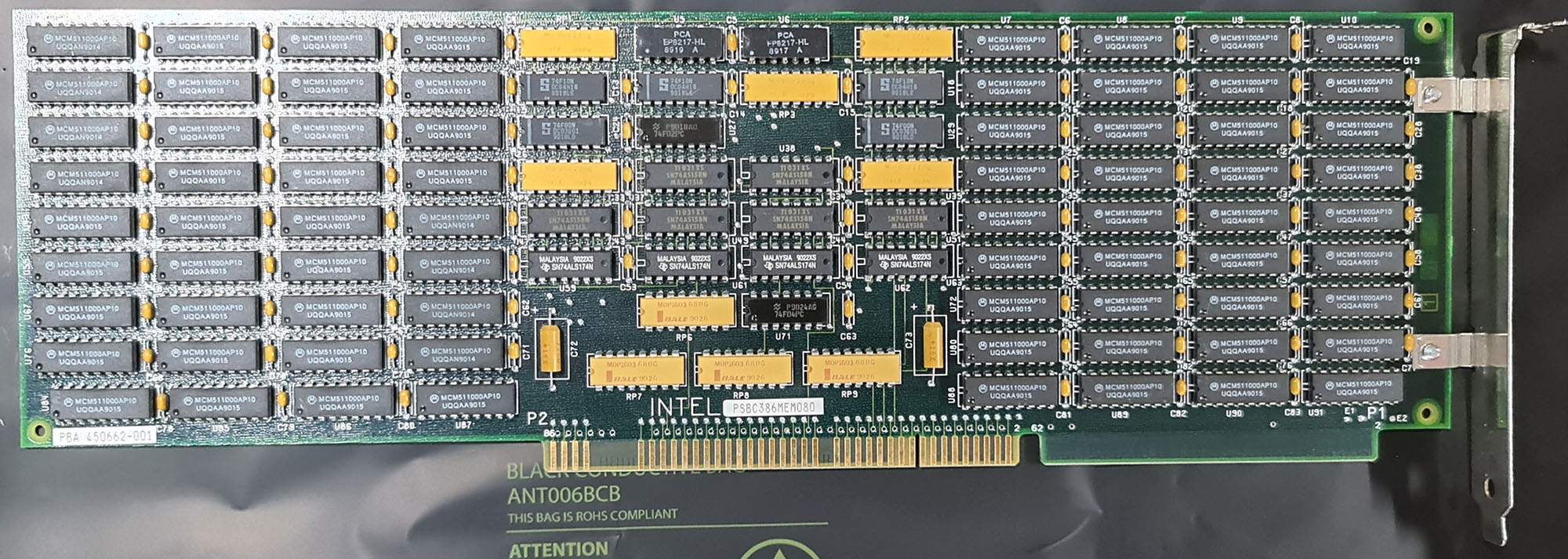

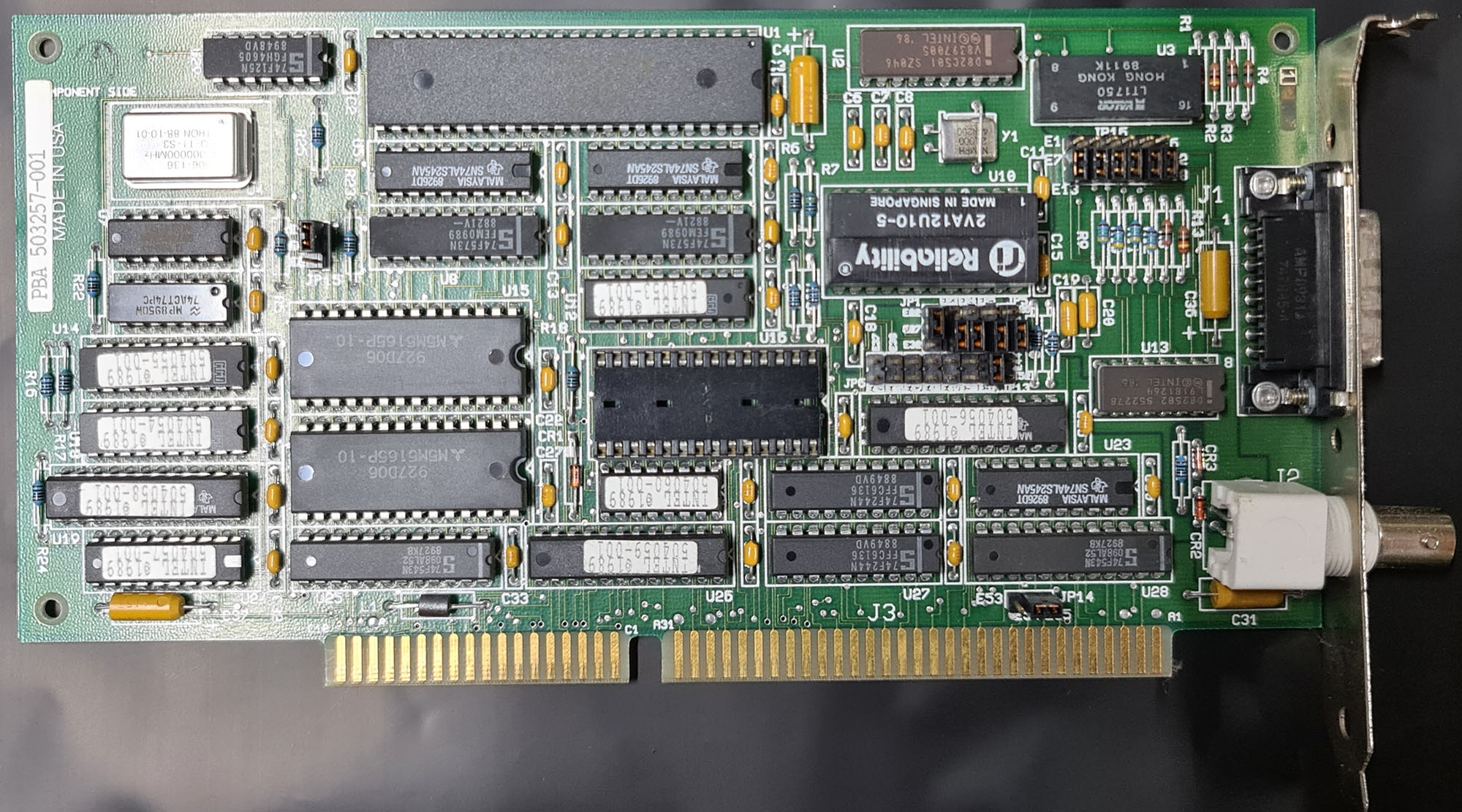

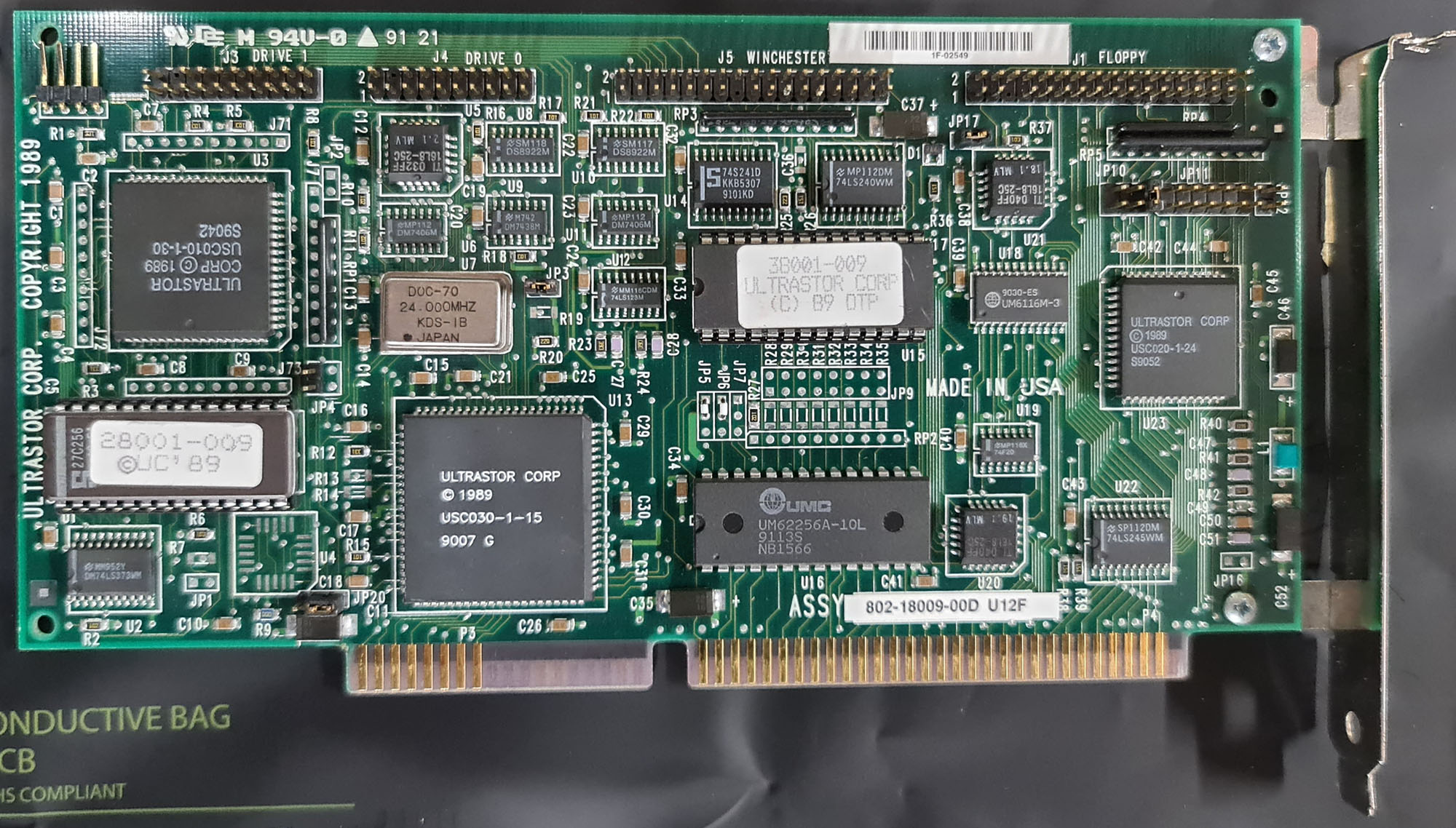

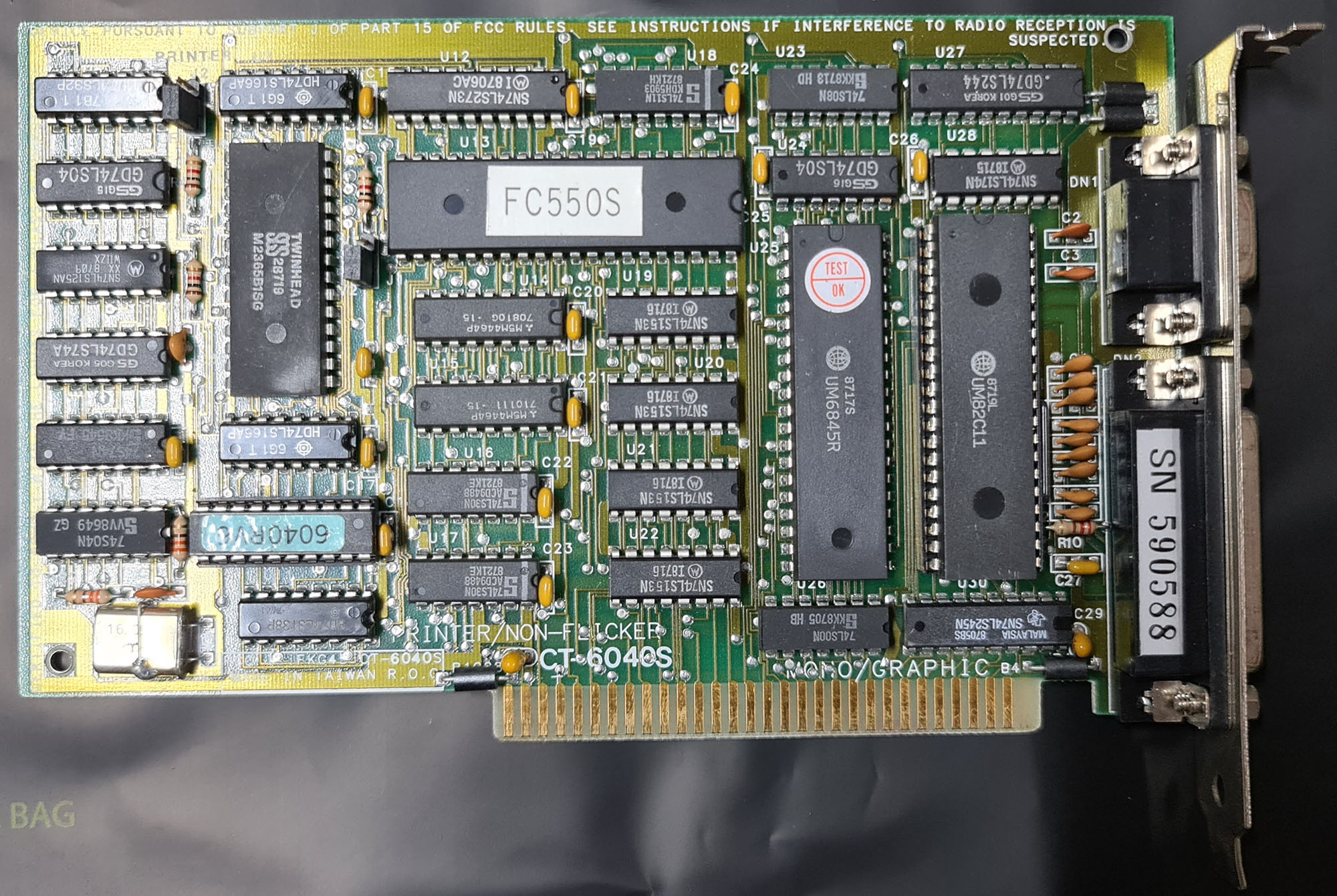

ISA cards in the system: Intel PC586 ethernet, monochrome graphics, Bell XTC tape controller, 8MB memory expansion, DCM (Direct Connect Module) to connect to the Hypercube, Ultrastor 12F ESDI controller
See also:
Intel iPSC/860
Getting an SRM for the Intel iPSC/860

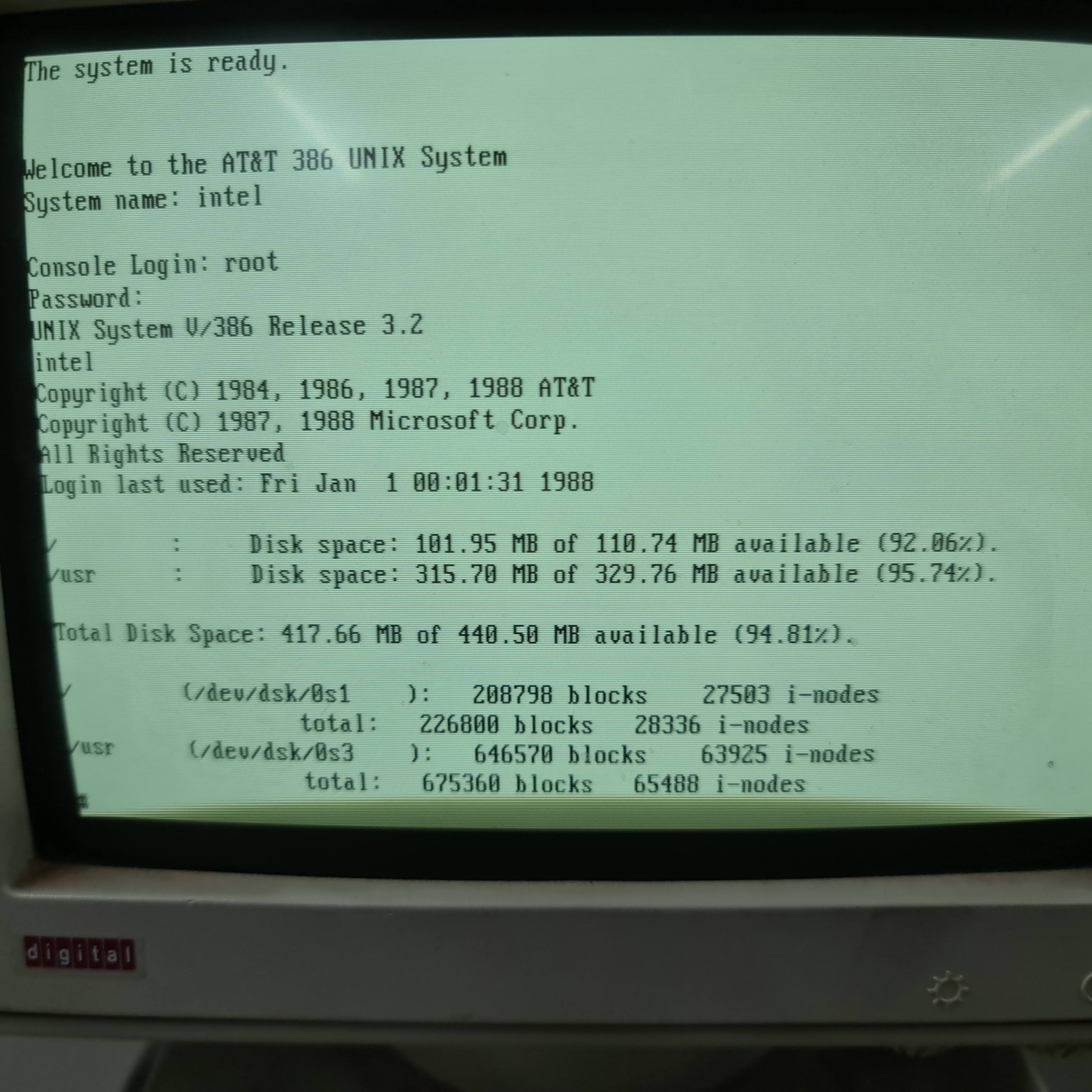

SRM for the iPSC/860 boots!
Cataloged Items
Intel iPSC/860 SRM [R0015]
Intel SYP301
| Class: | Intel SYP301 |
| Acquired from: | Chris Hegg |
| Acquired on: | 2021 |
| Amount of memory: | 8.5MB |
| CPU Speed: | 16MHz |
| Donation?: | 1 |
| Graphics: | Hercules |
| State: | fully functional |
| Serial Number: | P00211 |
| Accession number: | R0015 |
| Acquisition: | Intel iPSC/860 SRM - 2021 gift from Chris Hegg |
| Location: | Collection / Museum / Small Iron Room |
| Contains: | Intel 80386 |
